Ripristino totale

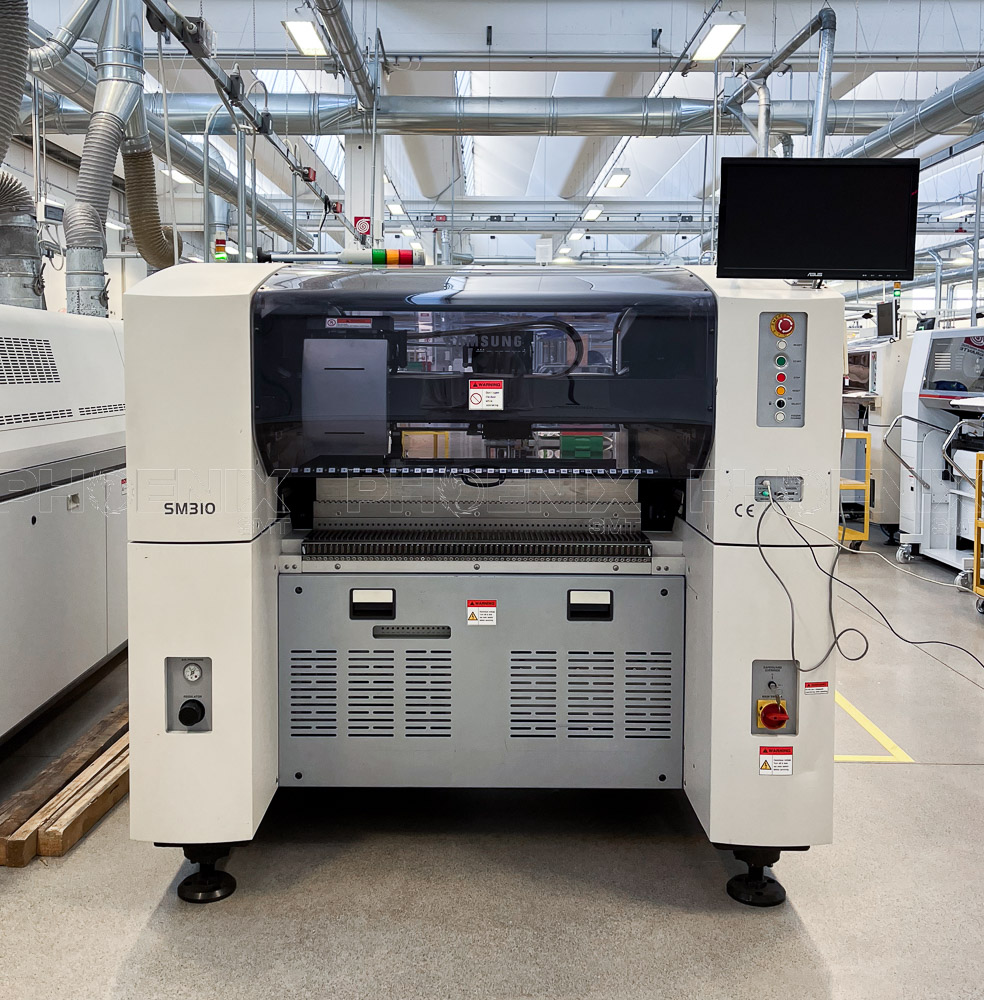

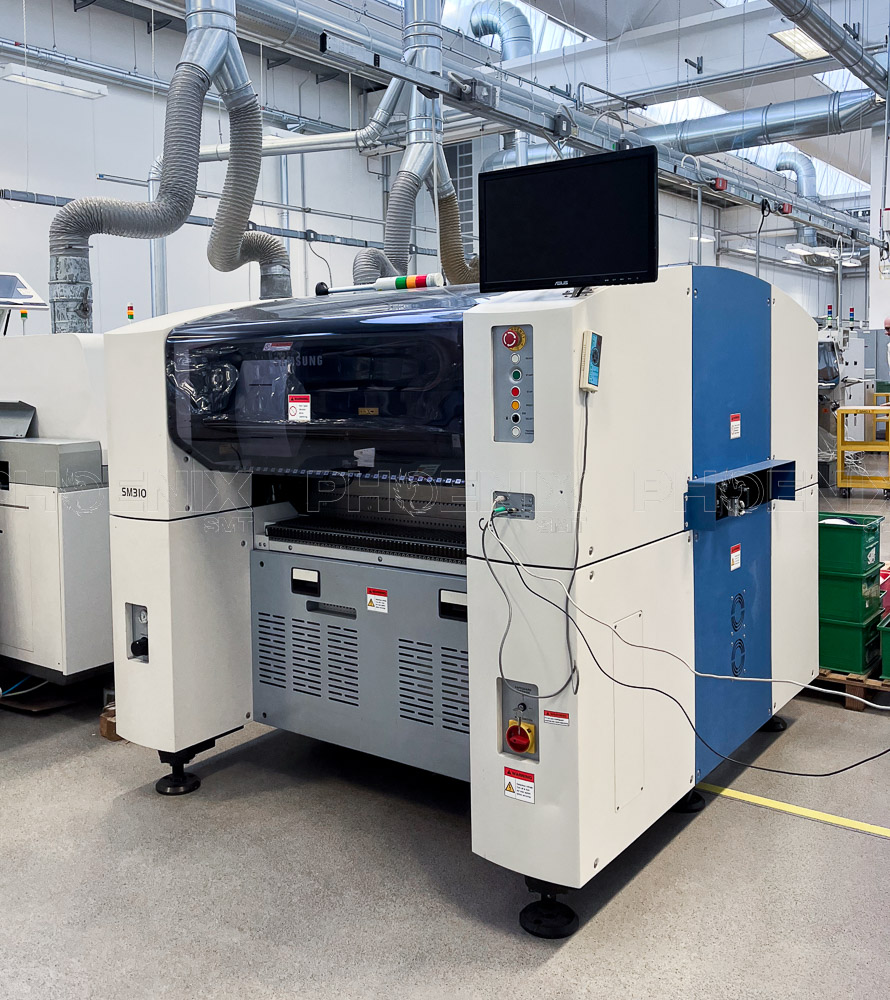

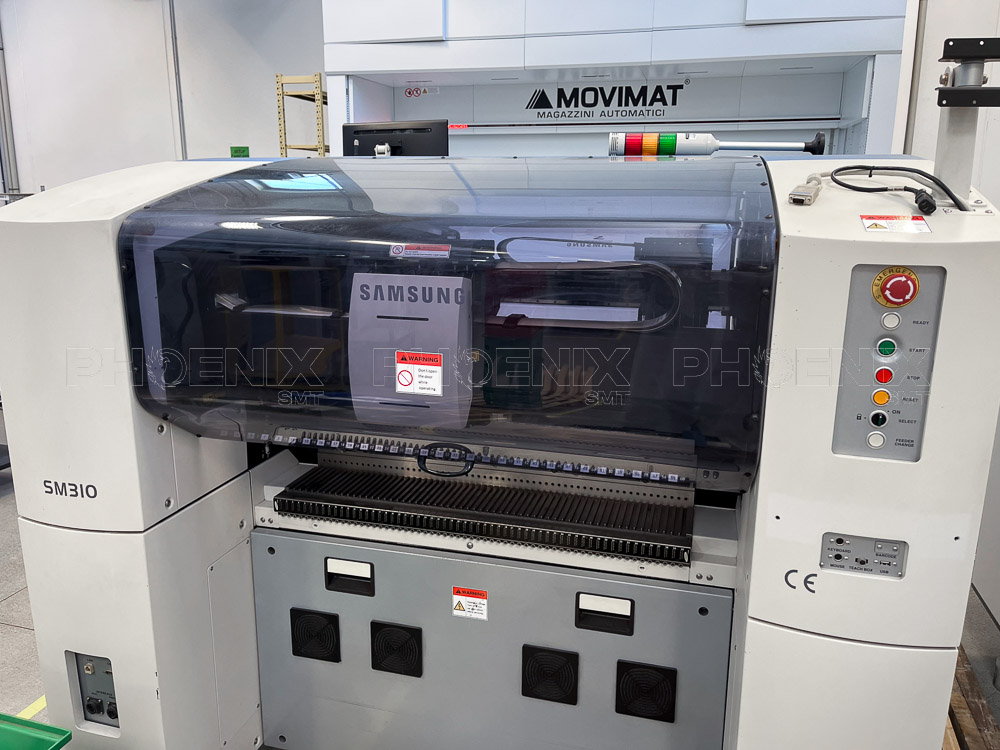

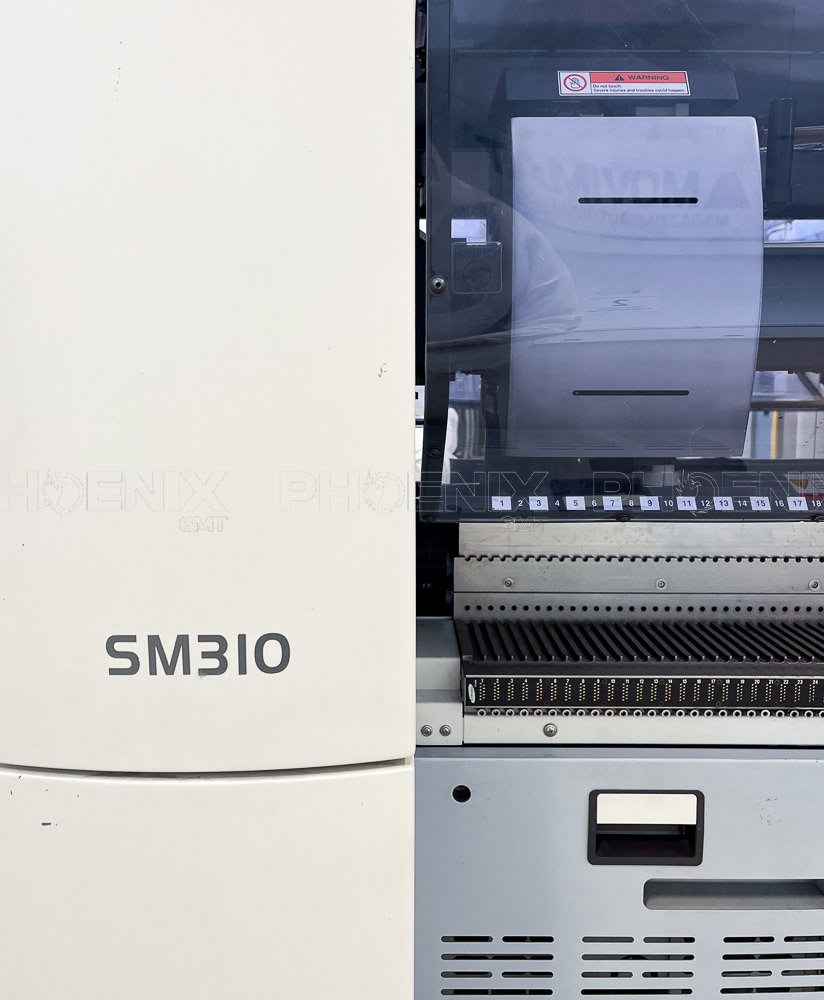

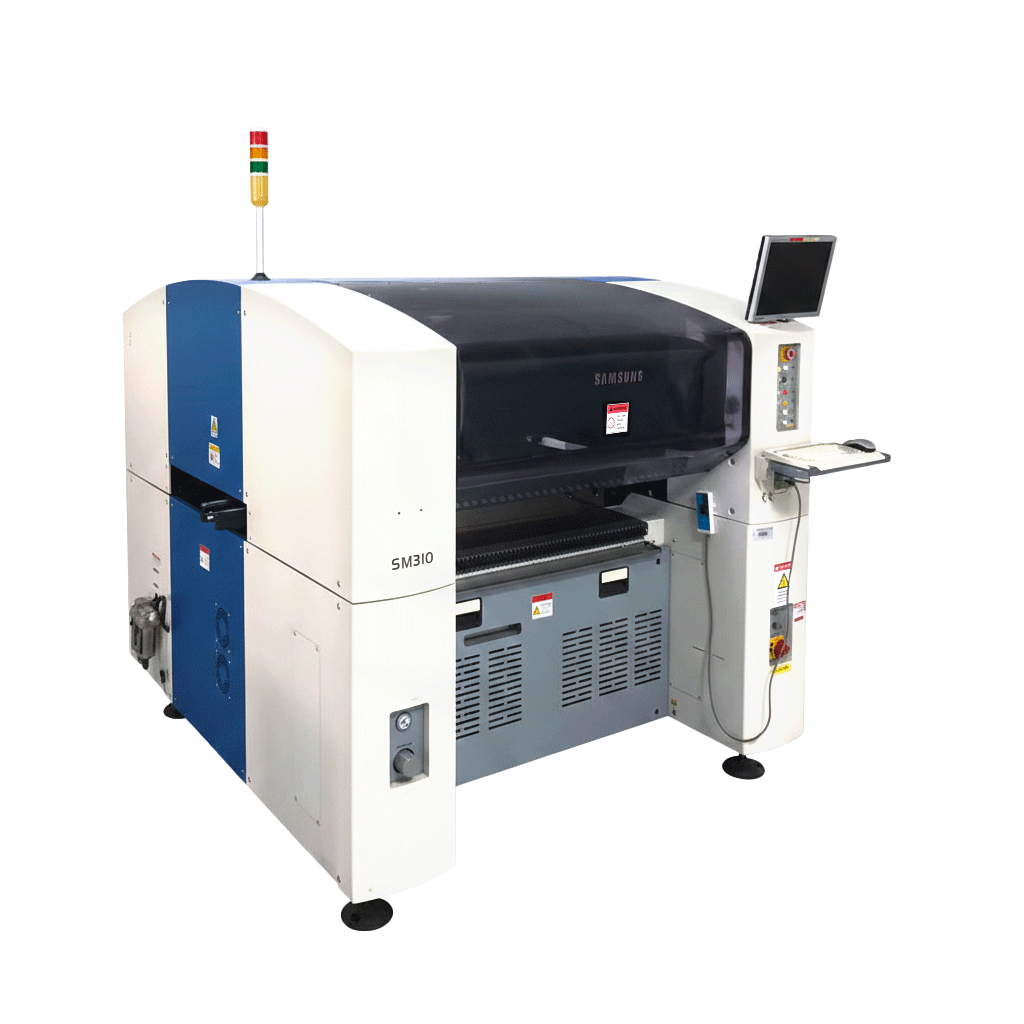

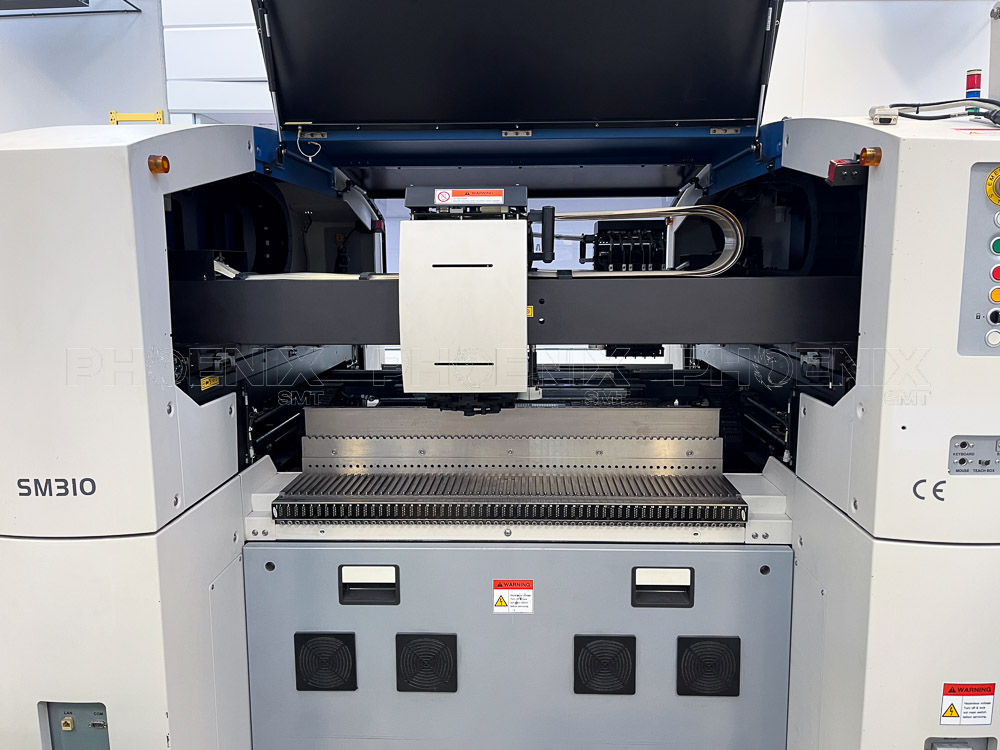

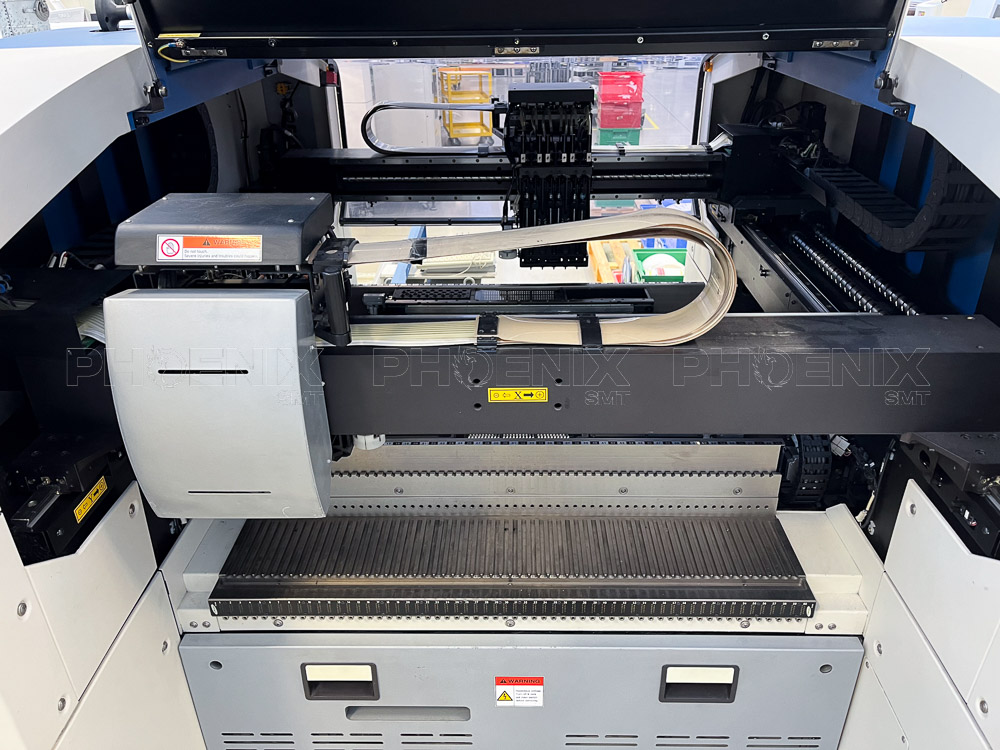

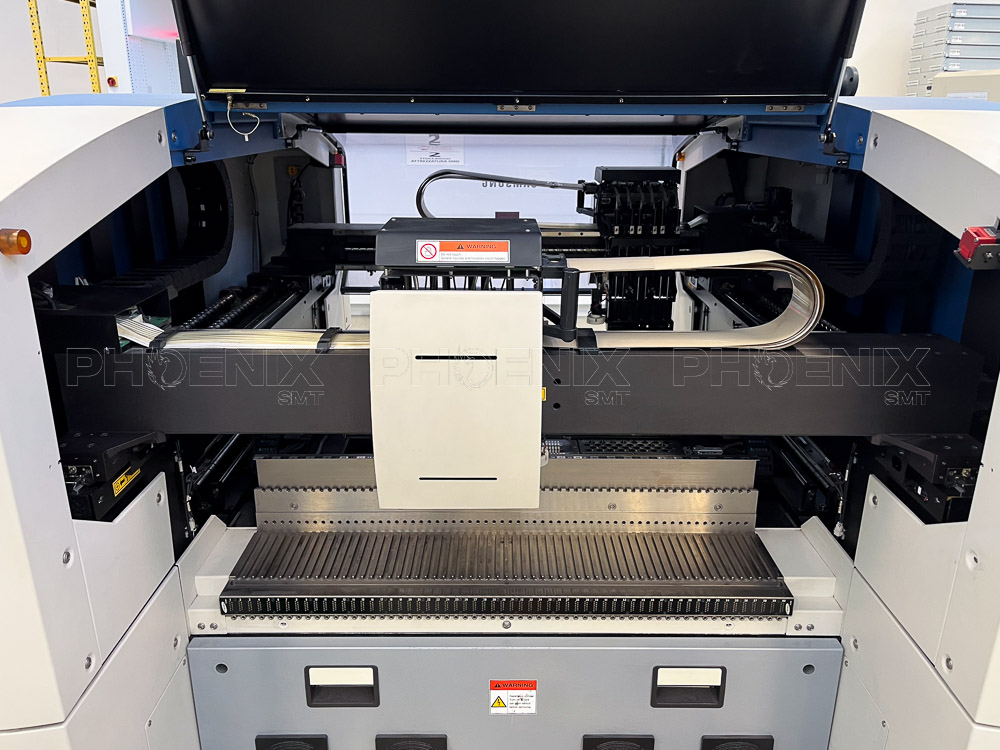

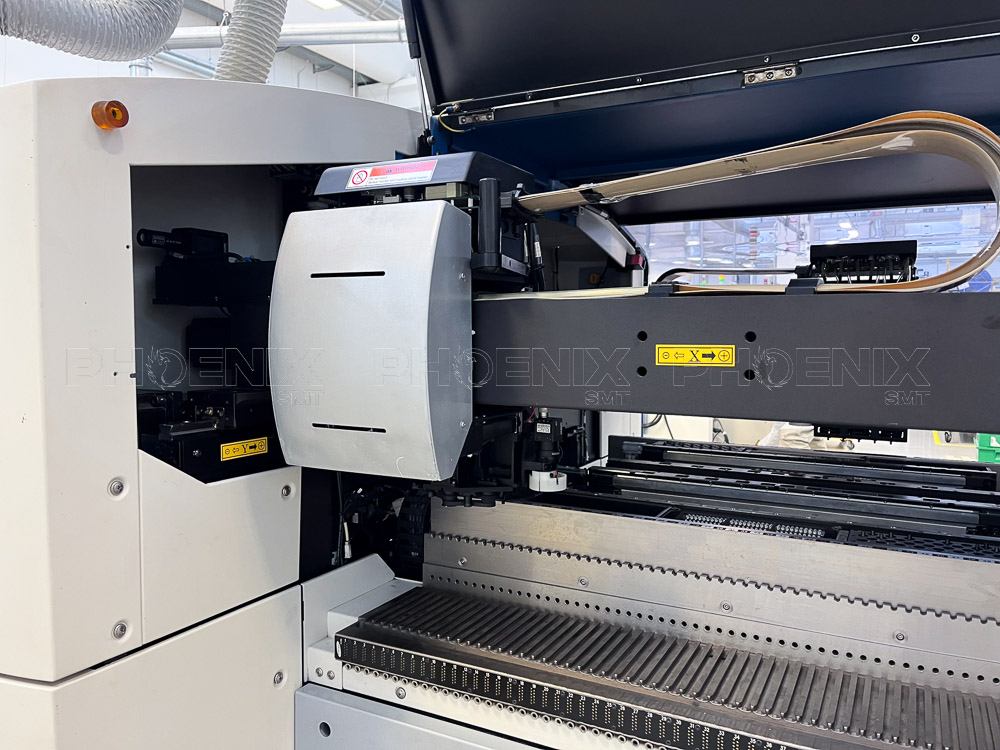

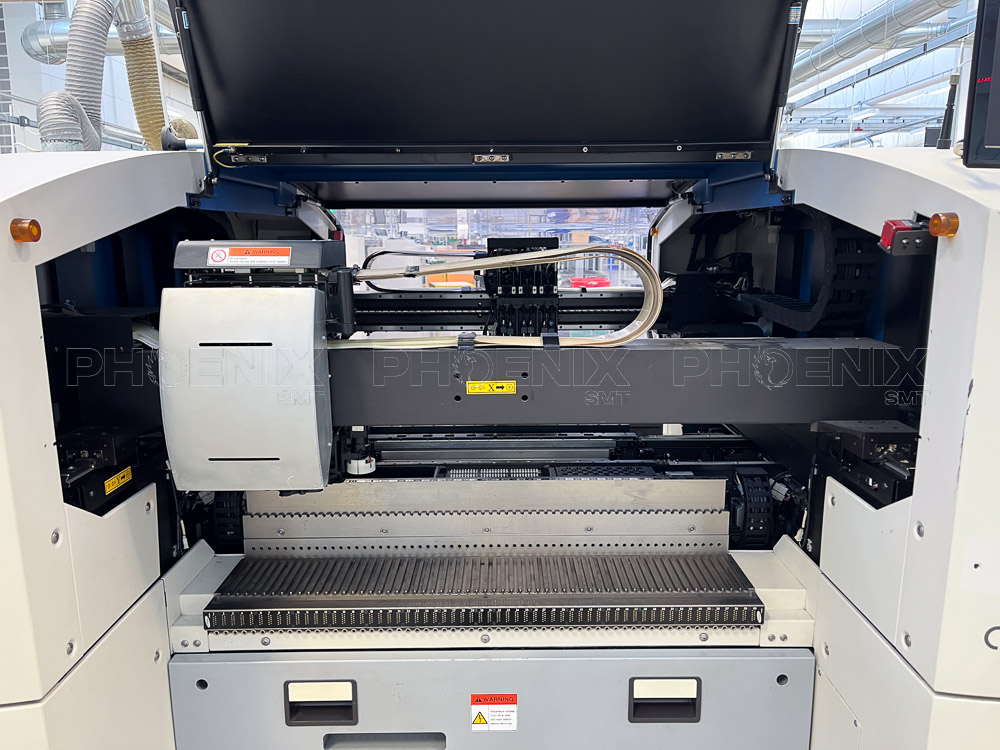

Model: SM310 Samsung
Category: Pick and Place/Feeders
Model Year: 2006
Condition: refurbished
Location: Italy – Padua
_______________________________
Specifications
- Speed: 30000CPH
- Equipment size: L 1650 x W 1680 x H 1530mm
- Weight: 1800kg
- Placement range: 0201 0402 0603 0805 ~ BGA
Rated power: 3-phase 200/208/220/240/380 / 415V 50 / 60Hz 4KVA
Pressure / weight: 0.49-0.78MPa 170L / min 1800kg
Patch speed: of 30,000 tablets / hour
Object Component: Flight Vision 1005-22mm / Fixed Vision 0603-32mm
The station number up to 120 stations 8mm braid
Target substrate PCB L50xW50-L460xW400mm
Component identification method
Full vision (Line scan optical)
Mounting efficiency
Linear Optical Scan LSO
CHIP 1608 30000 CPH (IPC9850)
CHIP 1005 29500 CPH (IPC9850)
CHIP 0603 29500 CPH (IPC9850)
SOP 20000 CPH (IPC9850)
Mounting accuracy: CHIP± 0,05 mm @ 3σ / CHIP
Minimum spacing between components: 0.1mm (0603) /0.15mm (1005)
Components can be mounted range
Component range: 0603 ~ □ 24mmCHIP, QFP, BGA (0402 Option)
Minimum pin pitch / QFP, minimum ball pitch / BGA
0.65mm (QFP) /1.0mm (BGA)
Component height: H8mm (Line scan camera standard)
PCB board size:
Smallest size: 50L * 40W
Biggest size: 510L * 420W (single track) | 510L * 220W (double track) | 510L * 500W (single track, optional)
PCB thickness: 0.38mm-4.2mm
Install the number of feeder 120ea / 112ea (docking cart)
Pressure and power consumption:
Power Supply AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) RMS 3.4kva (MAX.8.9KVA)
Air pressure: 5kg / ㎡, 260 NI / MIN
Machine Size: 1797 (L) * 1870 (D) * 1527 (H)
